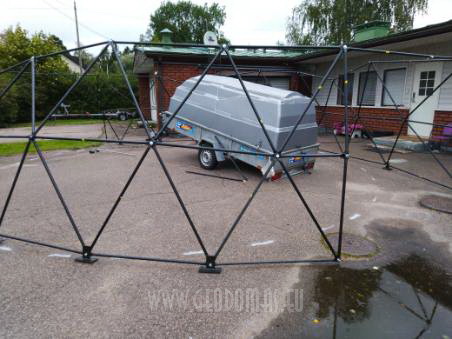

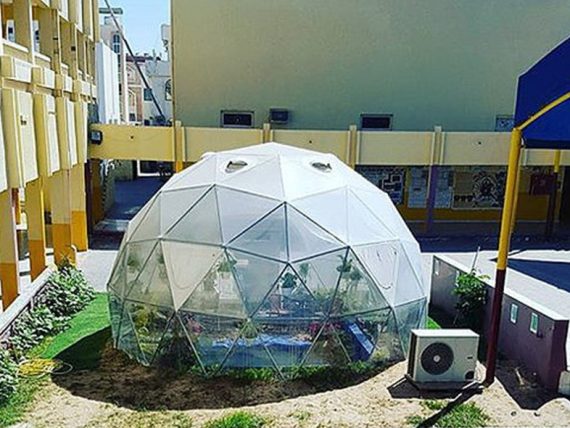

Metal, galvanized construction with a spherical shape

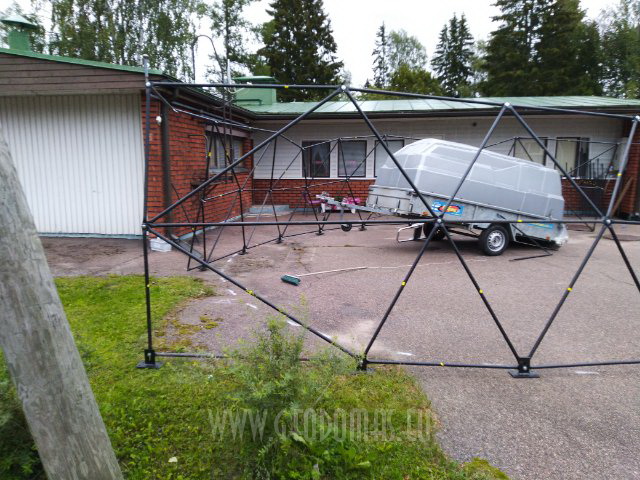

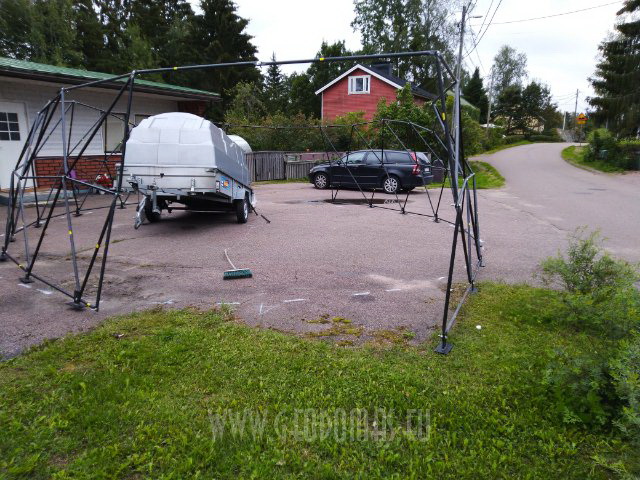

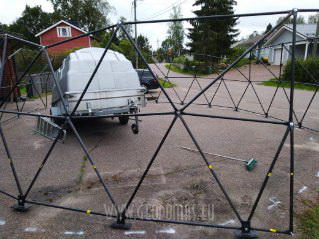

The geodesic dome structure allows you to create a light, well protected and very stable space. The main advantage of geodesic domes is the even distribution of stresses in all frame nodes.
Glamping Domes do not require any columns, load walls or columns inside to allow the customers to use the maximum available area. By using steel structural elements structure becomes sustainable in terms of weather factors, livetime and loads.
- The structures can be connected with tunnel paths;
- The cluster of connected domes creates an extraordinary sense of scope, allowing the event infrastructure to be categorized by theme using different designs;
- We offer most popular colored powered coatings;
Each geodesic dome structure is designed according to load calculations. This in turn ensures safety and durability. Our structural engineers can calculate the maximum loads of the equipment suspended by the geodesic dome of regional norms
Dome covering, plastic tension membrane
Dome covers we use the highest quality PVC tent fabrics. All our fabrics are certified and meet European Quality and Fire Resistance Standards. Detachable dome coating is known for its strengths and long service life. Due to the frequent weaving, the material is resistant to punctures, scratches and cuts. It is very easy to keep the dome covers clean. GEODOMAS durable covers are available in a variety of colors, resistant to mold and mildew, protected from UV rays and fire resistant. All fabrics have certifications to fire-retardancy NFP 92507: M2 ; DIN 4102: B1; EN 13501-1: B-s2-d0, BS 7837.
- Covering and window design, coordinate with the manager after the preliminary order
- The upper part of a cover is fitted with self-ventilated chambers;
- Triangular ZIP windows – windows are fastened with zippers and there is a detachable mesh against insects inside;
- We offer many colors;
Openable gravity ventilation elements
Upper openings for air discharge, lower openings for air supply. Holes are insulated against leakage.
All chambers of multilayer wall have special openings for condensate and air ventilation.
Gravity ventilation system performs all basic functions, but is not the main one.

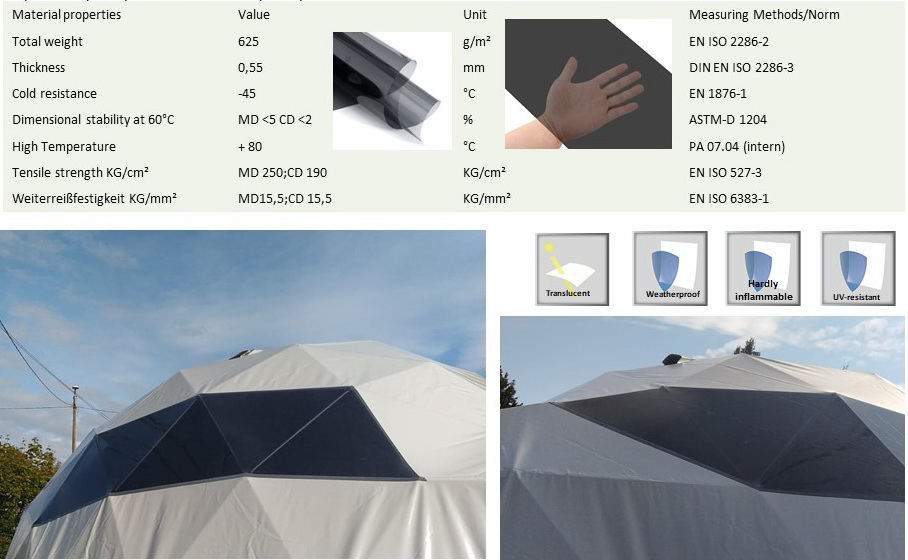

Outdoor panoramic window, plastic membrane
Foil PVC Window membrane Tinted for use in Glamping. Transparent PVC fabric, which perfectly transmits sunlight and illuminates the entire dome.
- Temperature range: from -40 ° C to +80 ° C;
- Blocks 90% of UV Solar Radiation. Excellent weatherability (High & Low temperatures);
- Easy to clean;
- Enhanced privacy;

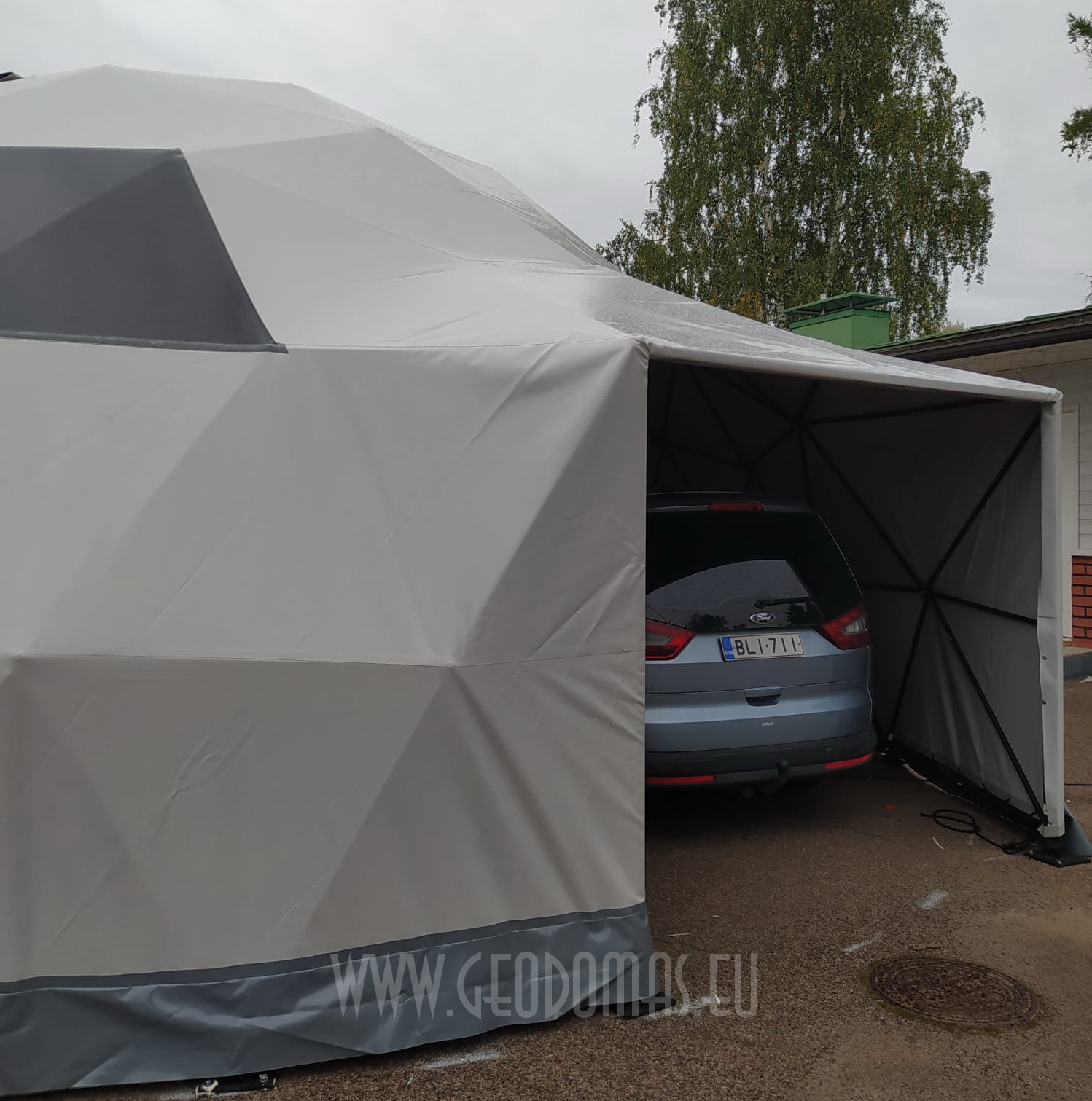

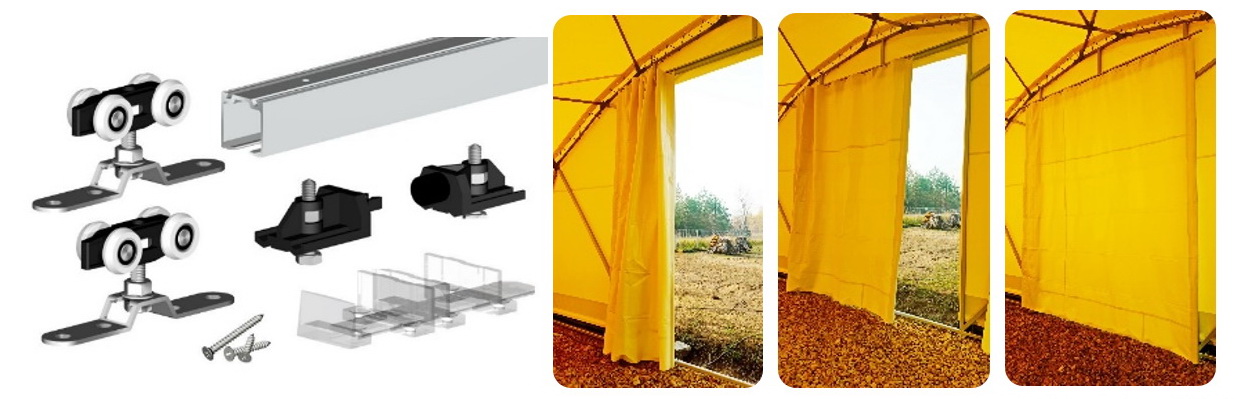

BASIC KIT | GARAGE GATES SYSTEM | DOOR FRAME & MEMBRANE GATES
- Dome Gates system Steel frame 2500х2500mm, painted, Door frame stabile.
- Vertical construction of awning gates
- Economy. Easy to operate manually or automatically.
- Aesthetics. From the range of colors, you can easily choose the tent gate curtains that best match the exterior of the garage domes.

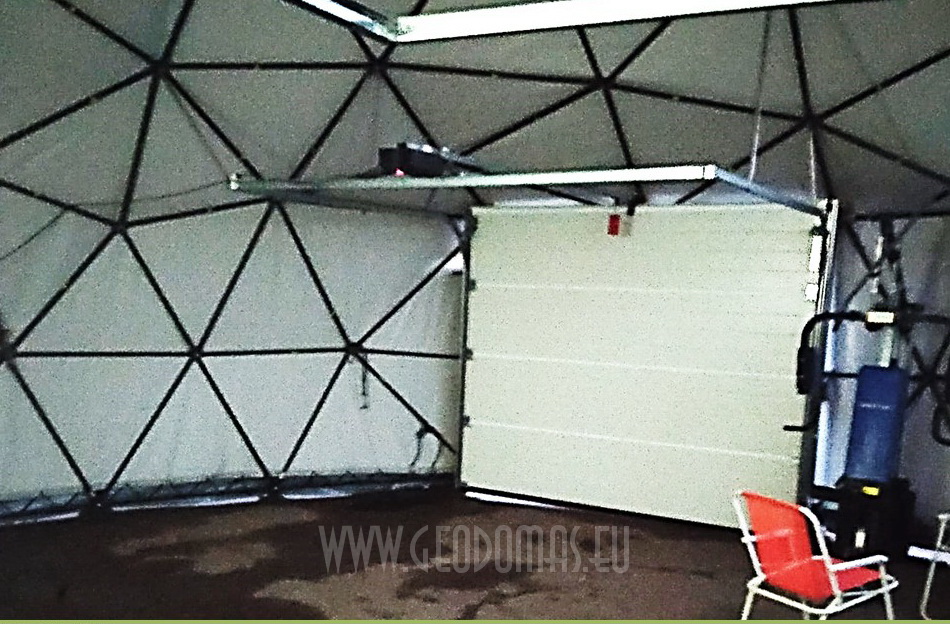

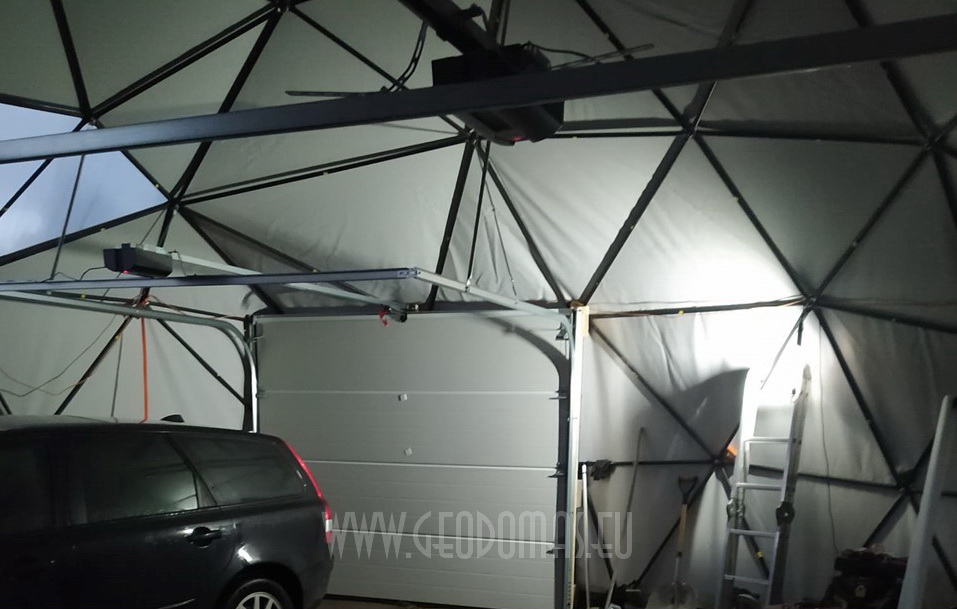

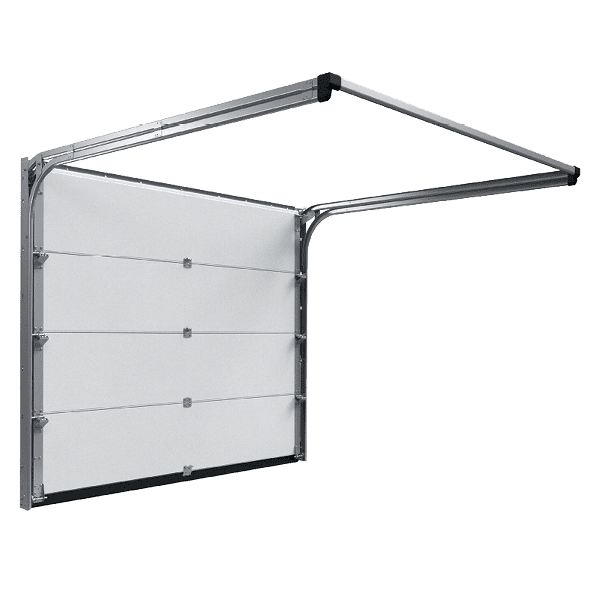

SECTIONAL OVERHEAD SLIDING GATE DOOR | ADD EQUIPMENT
- Ball-Bearing Rollers
- Insulated panels ensure high stability and optimum heat insulation
- integrated tension spring system
- Door sections designed with finger pinching protection
- Multiple security tension springs integrated into the side casing with double supporting cables on each side, doors 2500mm wide x 2250mm high. Larger doors are supplied with torsion springs which are tested for spring fracture.
- Automated doors include anti-leverage protection and automatic obstacle-detection
SINGLE ENTRY | FRAME SYSTEM FOR SINGLE DOOR | PVC OUTDOOR DOOR | ADD EQUIPMENT
STANDARD SINGLE-OPENED DOOR SYSTEM
The main advantage of 71mm PVC profile doors is their excellent insulation. They are resistant to damages and protect the house from burglars.
- PVC doors have a multi-point security lock.
- They are strong and secure.
- PVC doors come with a glazing packet
- It has a very simple maintenance.
MULTILAYERED THERMAL INSULATION OF DOME WALL, WITH TWO 100CM CHAMBERS | ADD EQUIPMENT
It is thin, multi-reflector, multi-layer insulation system. Reflective thermo insulation material is produced using the technology that NASA has developed to protect the spacecrafts from extreme external factors (solar radiation and frost).
- Insulation saves energy because it reduces all types of heat: conduction, convection, radiation, heat, humidity infiltration;
- Stability, insulation parameters in contrast to traditional insulating materials, there are no splits, material is continuous;
- Energy saving – insulation saves up to 30% of the energy for heating and cooling;
- Fast assembly – large rolls, simple system, combining consistent levels and flexibility of the material enables efficient assembly of the product in all conditions;
- THERMIC.PRO- resistant to chemicals, rodents and other pests, as well as most solvents that are used in construction;
- Reflectivity: 95%
- Thermal conductivity: λ = 0,030 W / (mK)
- Blocks Cellular 3G,4G,5G & WIFI Signals
INTERIOR WALL | ADD EQUIPMENT
Which comes in different Caparet types of material such as polypropylene or pp and nylon or combination of the materials. It can come in loop, cut, roll or broadloom or modular carpet squares or tiles or other combinations.
- Material: 100% polypropylene
- Weight approx.: 380,00 g/m²
- Flame retardant: EN 13501-1 Bfl-s1
Étiquettes : 50m2, auto, cadre, fenêtre, garage, glamping, intérieur, membranes, panoramique, paroi multicouche, thermic13+, tined, toute la saison, ventilation, zippé

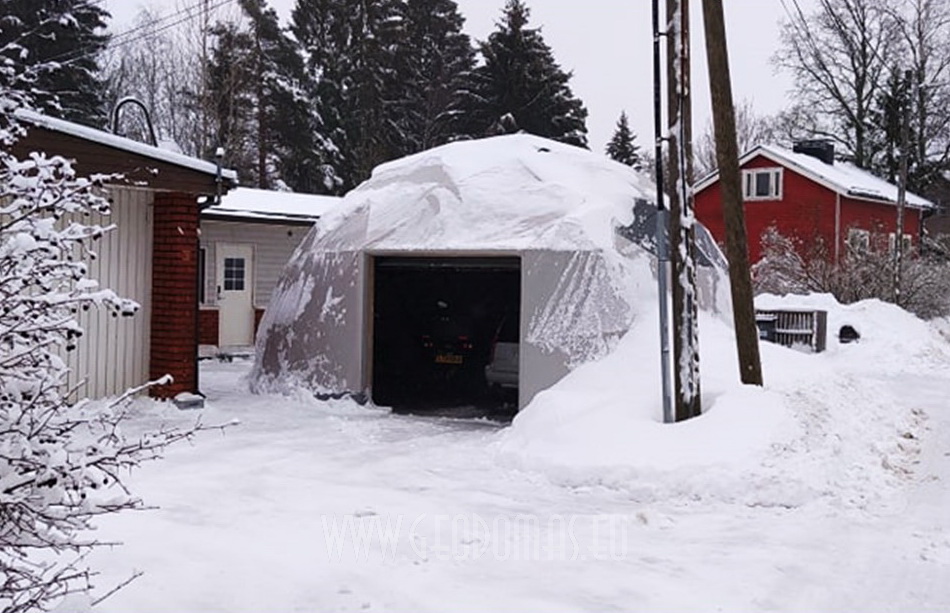

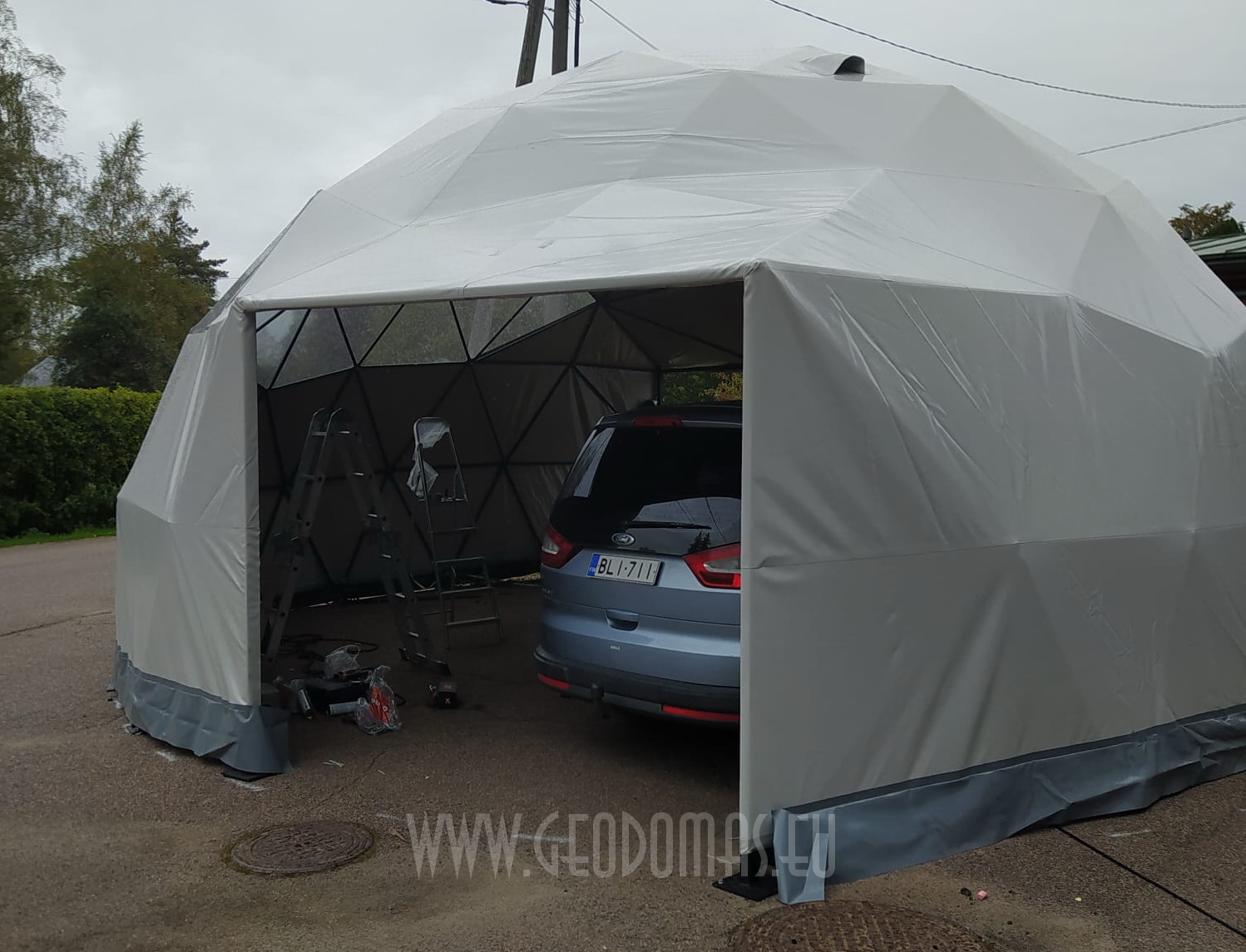

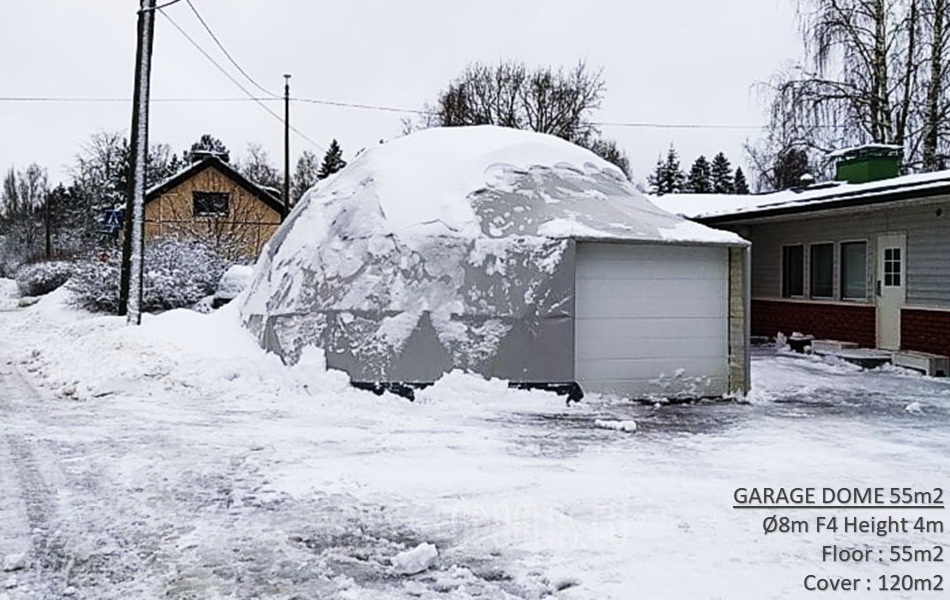

50m2 GARAGE GLAMPING Ø8m ICO F4 H4m
UGS : GL-GR-ICO-50m2-f4-6m-h4m-base
Catégorie : Agriculture et homestead | Ranch écologique

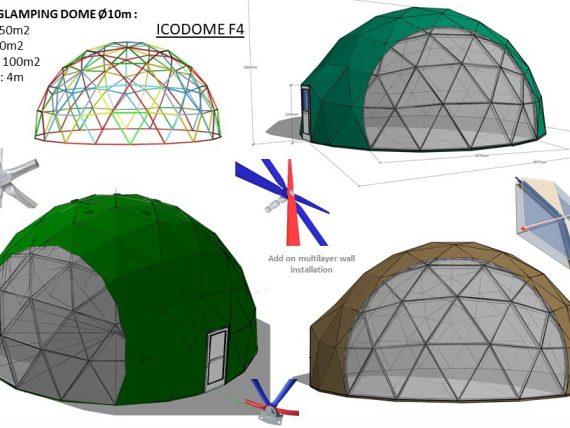

DOME PROPERTIES :
Frequency: 4 F|V
Height: 4 m
Diameter: 8 m
Floor Area: 50 sqm
Cover Area: 100 sqm
Height: 4 m
Diameter: 8 m
Floor Area: 50 sqm
Cover Area: 100 sqm
DOME PACKING :
|Dimensions||120 × 220 × 200 cm|
Cargo Transportation, Door-To-Door, Sea containers
DOME ORDER NOTES
- Production and order picking of BASIC SET : 3-4 weeks.
- Dome assembly documentation include.
- Set sealed on pallet, disposable packaging. Parts marked, shipped from Vilnius warehouse EXV, Lithuania.
- Delivery and installation work are not included in the price. After checking the manager will give you a special offer for additional services.
- Warranty 3 years, service life 20-50 years for different materials.
- Place an advance order and we will contact you.
